self osc is a feature in my book. if a filter doesn’t hit self osc its boring as shit


if you want to tame the self osc for this just increase the 91k

i don't generally design for guitar, this is for line level with my usual focus on low end

if you want to increase the cutoff range use a larger value dual pot

if you want to alter the focus of the filter range then change the 100n cap values

if you remove any filter cap from an active feedback loop guess what will happen.....



this is just a toy

it does, "ground" or vref is 4.5v

a charge pump could be used to double the voltage to 18v total from a 9v source if you want but component values may be off. better? s/n would be and it could process larger sources without clipping, etc... better is relative. this design was made to be as simple as possible using common values that anyone should have or be able to scavenge, nothing more


if you want to run it from a +/-9v setup ignore my power section and use yours. again, some values may be off, the 91k for example is there to determine the max self osc, using the chips input clipping as a limiter instead of the common diode setup which is rather boring

breadboard it, play around, have fun

 9v ?

http://members.chello.nl/~m.heijligers/DAChtml/PLL/PLL1-8.gif



interesting idea, perhaps a simple crude way to add voltage control to an existing crystal setup depending on the way its used. i doubt the range would be that great but it should be usable. similar to some older paia ideas

an updated drench using easy to find component values, no real samples sorry

s

they are just some links i had sitting around

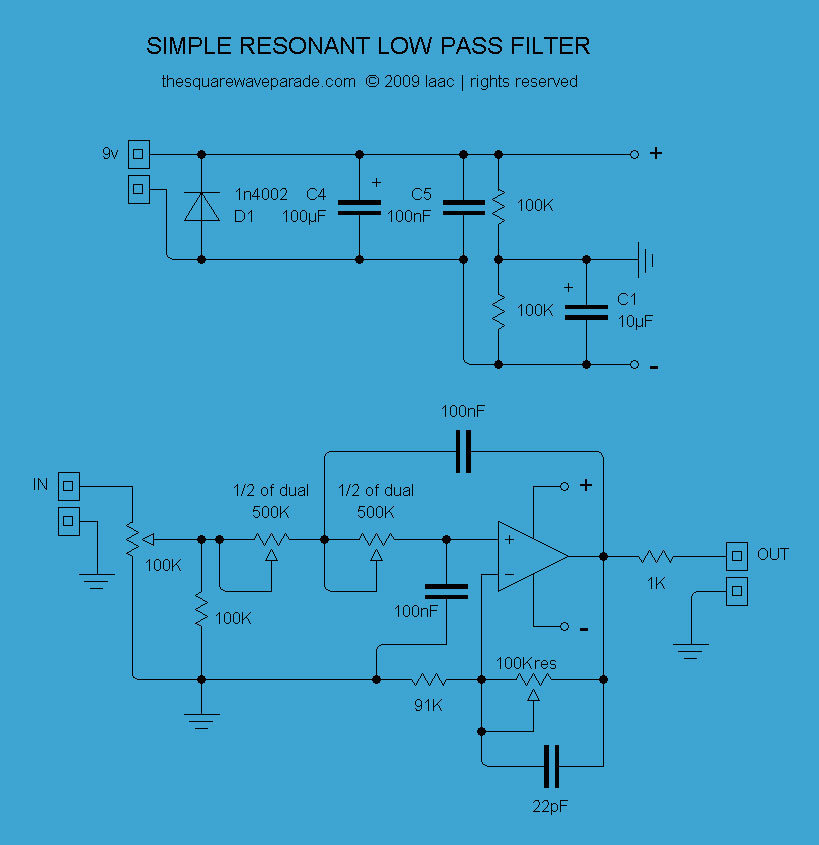

http://thesquarewaveparade.com/images/srlpfb.jpg
