Author Topic: Small clone chorus tremolo mods + more  (Read 24149 times)
expanoncolin
Administrator
phpBB Member


View Profile WWW
« on: June 18, 2008, 11:11:48 PM »

I recently had a friend ask me to add some knobs to his Small Clone.  For those not familiar, I've done mods to the small clone before, in particular turning it into a chorus tremolo hybrid, which I documented on the forum..  I found that this mod, which was more of a circuit bend to begin with, was creating biasing problems for a lot of people, so I made a more "safe" (and more involved mod), which is documented here.. Since the better mod, and also the depth and vibrato knob mods I add, are non-photodocumented, I figured I'd take some pictures as I went along so that everyone else could get a slice of the pie.  This is an extremely great tasting pie, too.  You can listen to a poorly-played guitar demo here.


(I apologize that the first few of these images are orange tinted, I had my camera on the wrong lighting setting)  The first step is to get the board out of the case.  The knob is a real pain to get it, see if you can pull it off with your fingers to avoid damaging it or the case with pliers etc (the screenprinting is VERY easy to scrape).  Also, the wires are pretty wimpy - if you're up for it, I recommend replacing them all.  It's fairly likely that you will break at least one throughout the process.


Mod #1  is replacing the depth switch with a pot.  A lot of people recommend using a 100k, or 50k, or even 20k linear pot, but I found that the best "feel" and range is with a 100k audio taper pot.  To each his or her own.  So, find the depth switch, desolder the wires...

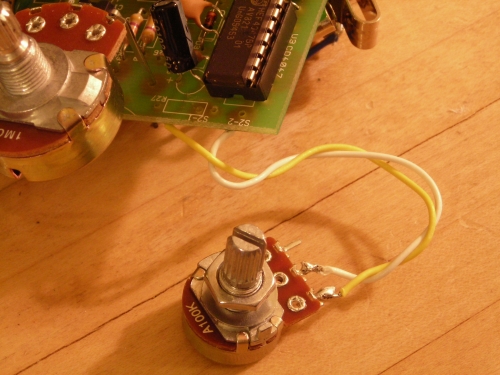

...then solder in the pot, as a variable resistor.  One wire to the center, one wire to the side.  If you want bonus depth, try messing with the clock capacitor (it is the 150pf one next to the 4047).  Note that I replaced the wires.  So, now that we have an extra slide switch and slot in our enclosure, what should we do with it?

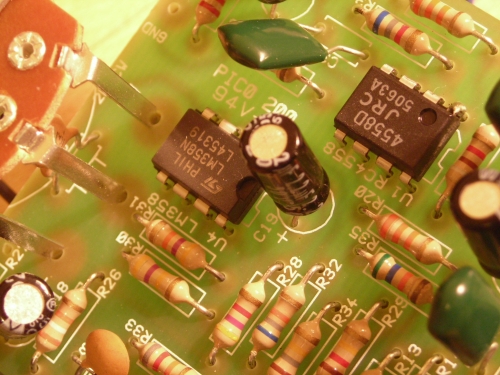

On this small clone, I used for a "fast LFO" mod.  This involves switching out the 2.2 uF capacitor seen here, right below the LM358.  It turns it into a pseudo (VERY VERY pseudo) ring mod, but also allows for some nice subtly shimmer.

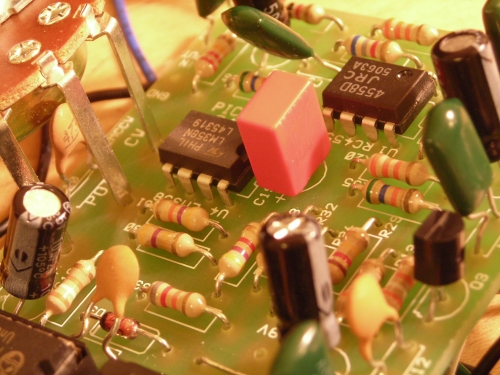

The first step is to replace it with a .1 uF cap.  (I think that's the value I used...  you might want to play around.  I should have written this down!)   We'll be switching the 2.2 uF cap back in, in parallel, adding back up for the normal "slow" setting.

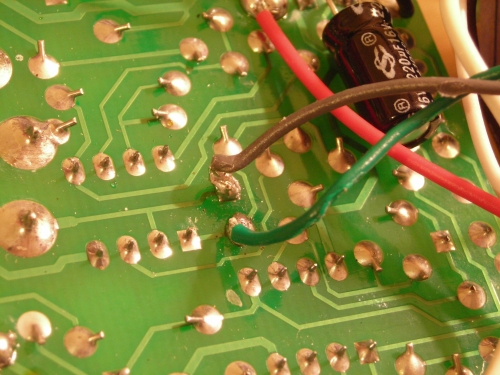

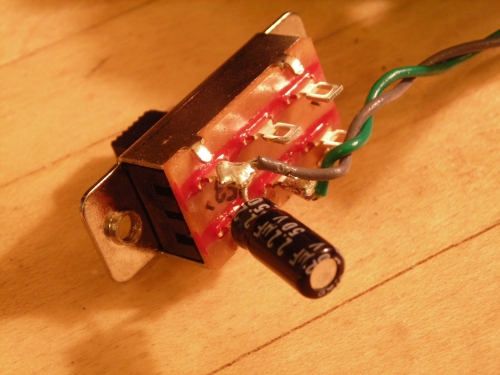

This is how you wire the cap on the switch.  Pick a set of two lugs other than the middle two (doesn't matter which) and solder the capacitor's leads.  Then, solder one wire to one of the center lugs, and the other wire to the side lug on the OPPOSITE side. Hopefully the picture helps here.  If you think about it, it is clear that this will add the cap in parallel, so long as you solder the wires to the board...


...like this.  Try it out, see if you like it.  It's more effective with the tremolo mod, too.  Also, you could  make it super-slow (I can't imagine why you'd want to do that) by using a large (22 uF maybe) cap in place of the .1uF one.  Personally I would use the switch as vibrato/chorus, rather than a doing a vibrato/chorus knob (more on that later) but it's not my pedal!

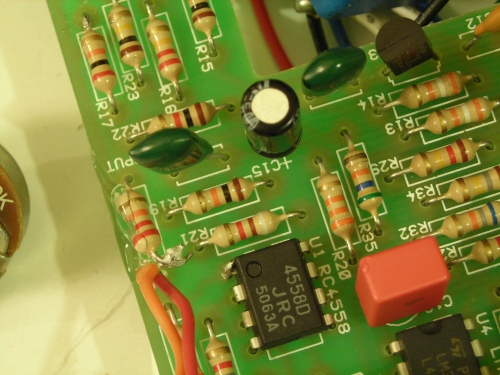

To do the vibrato mod, lift up one of the lugs of this 22k resistor.  This is the resistor that sets the level of dry signal in the output.  A chorus pedals output is the dry signal, combined with a vibrato'd version of the input (that is, the pitch raises and lowers periodically, very slightly).  So, if we remove the dry signal, we get vibrato.  To do that we can add resistance in series, because this 22k resistor is setting the gain in a noninverting op amp pattern.

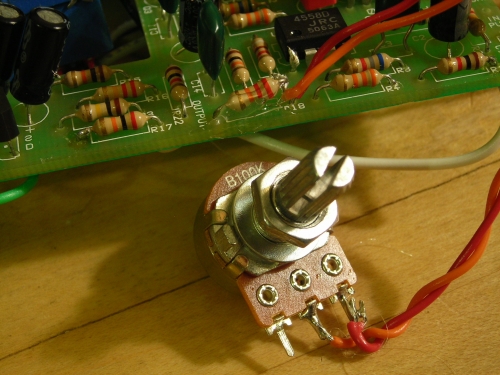

Wire the resistor's hanging leg to the center lug of a 100k pot, and one of the side lugs to the board where you removed the resistor from.  I also recommend hot gluing the resistor to the board, so you don't inadvertently break it off while moving the pot around.  Moosapotamus does this with a switch (SPST in place of the pot), which is not a bad idea at all.  The difference between the chorus and vibrato is pretty subtle, though if you are a tweaker and you want an extra bit of control over the depth a knob is the way to go.  Personally, I would use the spare depth switch as chorus/vibrato and not do the superfast mod.

To do the improved chorus vibrato mod, you will need an optocoupler of some sort.  You can buy one if you want (range of 5k light -> 200k+ dark works well) but you can also roll your own. Forumite DiyFreaque posted a really nice tutorial and para posted some very useful info on vactrols, but for the sake of pictures,  here's the way I do it (though to be fair I use H11F3's 95% of the time).

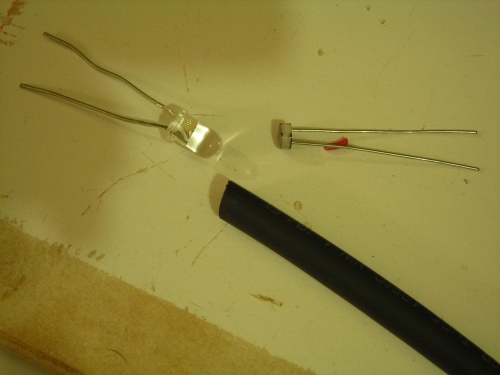

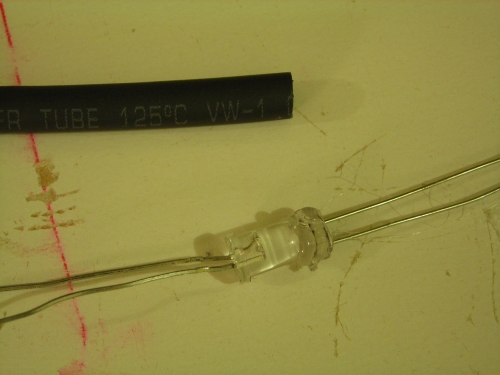

So, get a superbright led, a photoresistor, some heat shrnk, and some hot glue.  Any color works, superbright tends to do the job better however.  For the photoresistor, as I said, 5k->200k+ works well, but it's not super important.  It needs to be the same diameter, or close to the same, as the LED.  The heat shrink should be big enough to fit around the LED quite comfortably.


I find it's helpful to glue the LED to the photoresistor first.  That way you aren't fussing with dumping hot glue into the heatshrink, which will make it shrink and make putting the photoresistor in there pretty hard.  You just need a tiny bit, be sure not to put so much on as to make the whole thing fatter than the heat shrink.

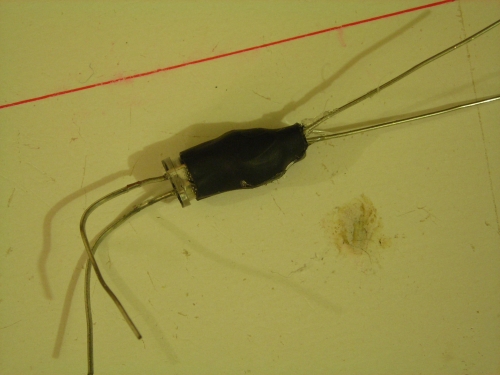

Cut off a piece of heat shrink a bit longer than the LED and photocell combined (not the leads), slide it over, and use your soldering iron to shrink it.  You'll get a nice little package like the one here.  Make sure you don't glue together the photocell or LED leads within the assembly.


Find the 10k resistor that is perpendicular to the 22k one we found earlier.  This determines the overall level of the output.  It's the feedback resistor for the op amp associated with the 22k resistor.  Changing its value will change the output level, which is exactly what we want for a trem effect.

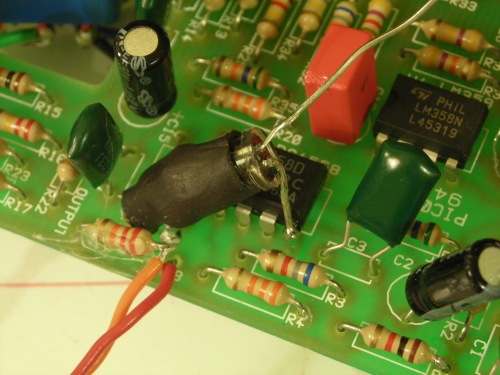

Replace this 10k resistor with the two leads of the photocell from your optocoupler.  The cathode (negative end, shorter lead) of the LED needs to be grounded.  A convenient place for this is leg four of the nearby 4558 opamp chip.  Bend the optocoupler over, cut the lead, and solder it on.  This should also secure it in place pretty well.  If you want to ground it elsewhere, feel free.  Leave the anode free for now.

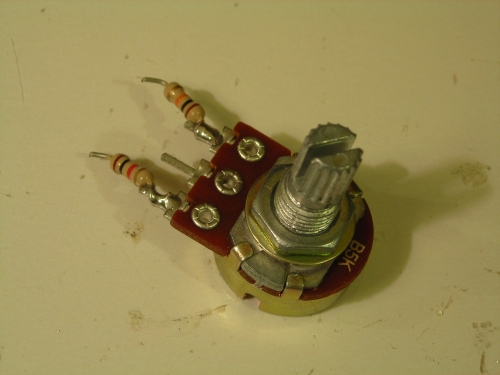

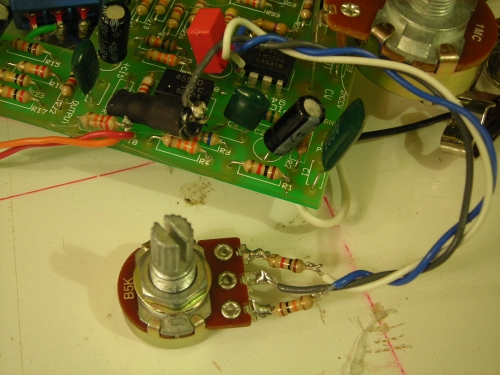

Here's the tremolo pot. You need to wire a 10k resistor to one side lug, and a 1k resistor to the other side.  I recommend choosing the lugs in the order I have them (1k to the right)- that way as you turn it up, more tremolo will be added.  Try to really secure the resistor on, maybe wrap the leads around where you are soldering a few times.  Also make sure to keep the resistors overall below where the pots will be touching the enclosure - if any lead shorts out with the box, you will be screwed.

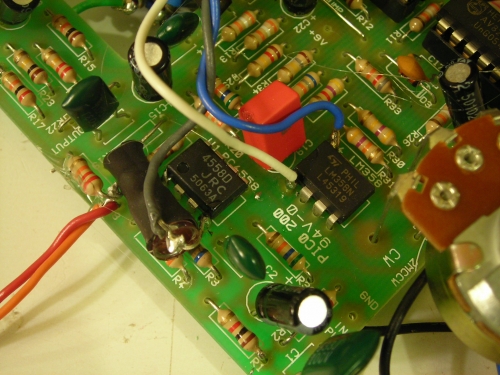

Here's where to put wires for this pot.  Use a 5k linear pot.  You want one going to the cathode (positive side, the longer lead that you didn't just ground), one wire going to pin 1 of the LM358, and one wire going to pin 8 of the LM358.  Make sure not to inadvertently bridge together any leads of the LM358.


The wire from the cathode goes to the center, from pin 1 goes to the 1k resistor, from pin 8 goes to the 10k.  The 1k resistor is now connected to the LFO output, so when you turn the pot all the way to that side, the LED will pulsate in speed with the LFO, modulating the gain.  The 10k resistor is connected to V+, so when you turn it all the way that way, the LED just lights up, giving a constant signal with no modulation in gain/level.  If you find that your output is too quiet or too loud, adjust the 10k resistor.  If you notice that the LED is blinking a little even when you turn the pot all the way to the 10k resistor side, it's OK, you won't be able to hear the tremolo.


Drill some holes and you're done!  Drilling holes is probably the worst part, the EHX enclosures completely suck for drilling - you will probably bend it a little, so bend it back before you screw it back together.  Be careful not to scratch the box at all (this is very hard not to do).  Test all the mods before you put it in the box of course, and enjoy!  Please post any questions.  These mods are for noncommercial use - if you want to sell them, come up with your own!

-Colin
« Last Edit: April 08, 2010, 11:03:26 PM by expanoncolin » Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
mikeford
phpBB Junior Member

View Profile
« Reply #1 on: June 20, 2008, 04:21:19 AM »

NICE!
ThNKS FOR THE DETAILED MOD INSTRUCTIONS.
Logged

RON PAUL 2008
Moonibopper
phpBB Junior Member

View Profile Email
« Reply #2 on: August 19, 2010, 09:53:44 AM »

I just looked at your most recent tutorial for the Small Clone mod. Great stuff! Could you confirm that these parts from Small Bear are what's needed?

Alpha Single-Gang 16mm, Solder Terms, Linear & Audio Taper
(100K Audio)

Capacitor, Panasonic ECQ-V .01 mf. - .1 mf.
(.1 mf.)

Photocoupler Vactec VTL5C4

Alpha Single-Gang 16mm, Solder Terms, Linear & Audio Taper
(5K Linear)

Alpha Single-Gang 16mm, Solder Terms, Linear & Audio Taper
(100K Linear)

Metal Film 120 Ohms To 1K Individual
(1K)

Metal Film 6.8K To 39K Individual
(10K)

Also, in the 7th photo from the start of your tutorial, I'm having trouble figuring out where you're soldering the wires to. Can you clarify? Thanks.
Logged
expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #3 on: August 19, 2010, 10:13:24 AM »

Looks good to me.  The two wires from the switch should solder to the pads on the board that correspond to the .1 uF capacitor that you replaced.

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
Moonibopper
phpBB Junior Member

View Profile Email
« Reply #4 on: August 19, 2010, 04:49:38 PM »

Great, thanks! Also, I have a TR-2 from Boss. Could this modded small clone replace that pedal completely?
Logged
expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #5 on: August 20, 2010, 11:47:12 AM »

Mostly; there are no waveform controls or anything.

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
houseofusher
phpBB Junior Member

View Profile
« Reply #6 on: August 30, 2010, 01:09:38 PM »

Hi, thanks for the tutorial!

Mine works great except for the tremolo knob Sad  and I don't understand why. The three leads that are going to the B5K pot are connected like in the tutorial. when I turn out all the lights I can see the led light up when I turn the pot to the right, but I don't hear any difference in sound.

But when I replace the pot by an on-on toggle switch I can go from no tremolo to full tremolo. The full tremolo has short pulses and is really harsh. I was expecting to see the led in the optocoupler pulsate with the effect but it just lights up.... maybe something wrong there?

I hope you can help me...
« Last Edit: August 30, 2010, 01:11:27 PM by houseofusher » Logged
expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #7 on: August 30, 2010, 01:28:30 PM »

Yes, the LED should pulsate.  If that's not happening... check your wiring, or try it again! Smiley

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
houseofusher
phpBB Junior Member

View Profile
« Reply #8 on: August 30, 2010, 02:26:56 PM »

I made a mistake here: one wire going to pin 1 of the LM358, and one wire going to pin 8 of the LM358.
I swapped these 2 wires and it works like a charm now. Awesome mod!

Cheerio
Logged
mikebike
phpBB Member

View Profile WWW
« Reply #9 on: March 18, 2011, 04:50:43 PM »

man,

i took my time working on this mod, and it doesnt work!
i checked the polarity on my vactrol, its good. i've looked around the solderjoints, but i hot glued everything so it would be safe so ill have to chek more.
my led isnt blinking, and theres no effect
the status led lights up, and it bypasses
but when its engaged i just get a little bit of guitar that gets quieter if i move my hand over the vactrol
also the clean guitar goes away when i flip the vibrato switch

any ideas where to look?
if theres no effect at all maybe i fried something?
Logged

expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #10 on: March 18, 2011, 11:14:56 PM »

man,

i took my time working on this mod, and it doesnt work!
i checked the polarity on my vactrol, its good. i've looked around the solderjoints, but i hot glued everything so it would be safe so ill have to chek more.
my led isnt blinking, and theres no effect
the status led lights up, and it bypasses
but when its engaged i just get a little bit of guitar that gets quieter if i move my hand over the vactrol
also the clean guitar goes away when i flip the vibrato switch

any ideas where to look?
if theres no effect at all maybe i fried something?


It sounds a lot to me like the way you've wired the LED is somehow shorting out the LFO - this would likely make the BBD stop outputting anything, which is exactly what's happening.  Also, the LED should be blinking!  So certainly verify that that connection is as it should be... and of course, triple check for shorts.  You might also try disconnecting the LED and seeing if the chorus effect starts working again (the BBD starts outputting again, in other words).

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
pscrip
phpBB Junior Member

View Profile Email
« Reply #11 on: June 22, 2011, 11:21:21 AM »

I finishedthe mod and it works but did this make anyone else's pedal louder or is it just mine
Logged
expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #12 on: June 22, 2011, 01:22:53 PM »

I finishedthe mod and it works but did this make anyone else's pedal louder or is it just mine

This may happen depending on the photocell and LED you use.  Try increasing the value of the 10k resistor you soldered to the pot (see my note in the tutorial! "If you find that your output is too quiet or too loud, adjust the 10k resistor.")

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
FrogT
phpBB Junior Member

View Profile Email
« Reply #13 on: January 16, 2012, 10:41:55 AM »

Hey! I've done it, but the tremolo mod is not OK... The pot makes no effect...  Cry I used a VACTEC VTL5C4 for that because I didn't find the good photoresistor @ banzaÏeffects. I've done a really pretty good wiring and all checked with multimeter it's all ok... Just this Trem effect... Should I change this Opto? (sorry I'm French!)
Logged
expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #14 on: January 16, 2012, 11:43:25 AM »

Hey! I've done it, but the tremolo mod is not OK... The pot makes no effect...  Cry I used a VACTEC VTL5C4 for that because I didn't find the good photoresistor @ banzaÏeffects. I've done a really pretty good wiring and all checked with multimeter it's all ok... Just this Trem effect... Should I change this Opto? (sorry I'm French!)

Try using a smaller resistor than 10k on one side, and a bigger resistor than 1k on the other side of the pot.

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.

http://www.eaced.com
http://www.experimentalistsanonymous.com
