Author Topic: Breadboarding  (Read 2702 times)
crochambeau
Moderator
phpBB Member


View Profile WWW
« on: August 23, 2009, 07:13:53 AM »

The term "breadboard" dates back to the early days of electronics design, where experiments were laid out with hammer and nails on actual bread (cutting) boards plucked from the kitchen. Don't try this at home! (unless you live alone or have extremely understanding cohabitants)

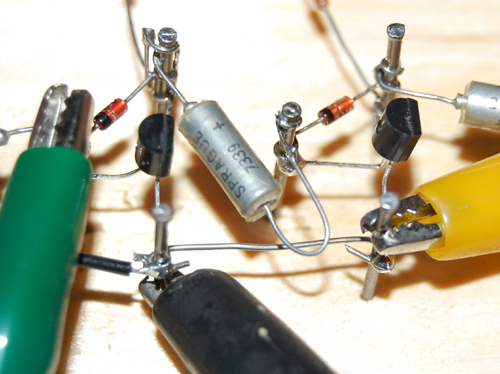

Here's a little fuzz I knocked out on some reclaimed pallet wood:


So, next time you realize you've consumed the last of your perf or your "breadboard" is so important that you can't bear to tear it down yet, remember, all is not lost.

I suggest a flux for the pins/nails as they do not take to solder that well. Also, keep in mind that there are essentially small antennas all over the circuit, making them pretty adept at picking up radio.
« Last Edit: August 23, 2009, 07:22:13 AM by crochambeau » Logged

expanoncolin
Administrator
phpBB Member


View Profile WWW
« Reply #1 on: August 24, 2009, 02:48:32 PM »

I remember a long time ago I built a siren like this!  Waayyy back when, before I had any knowledge of electronics whatsoever... I must have been 10 or so.  A pretty cool method, it would be fun to throw this into a translucent case.

-Colin
Logged

The best way to learn is to experiment.  Try it first, then learn from what went wrong.
